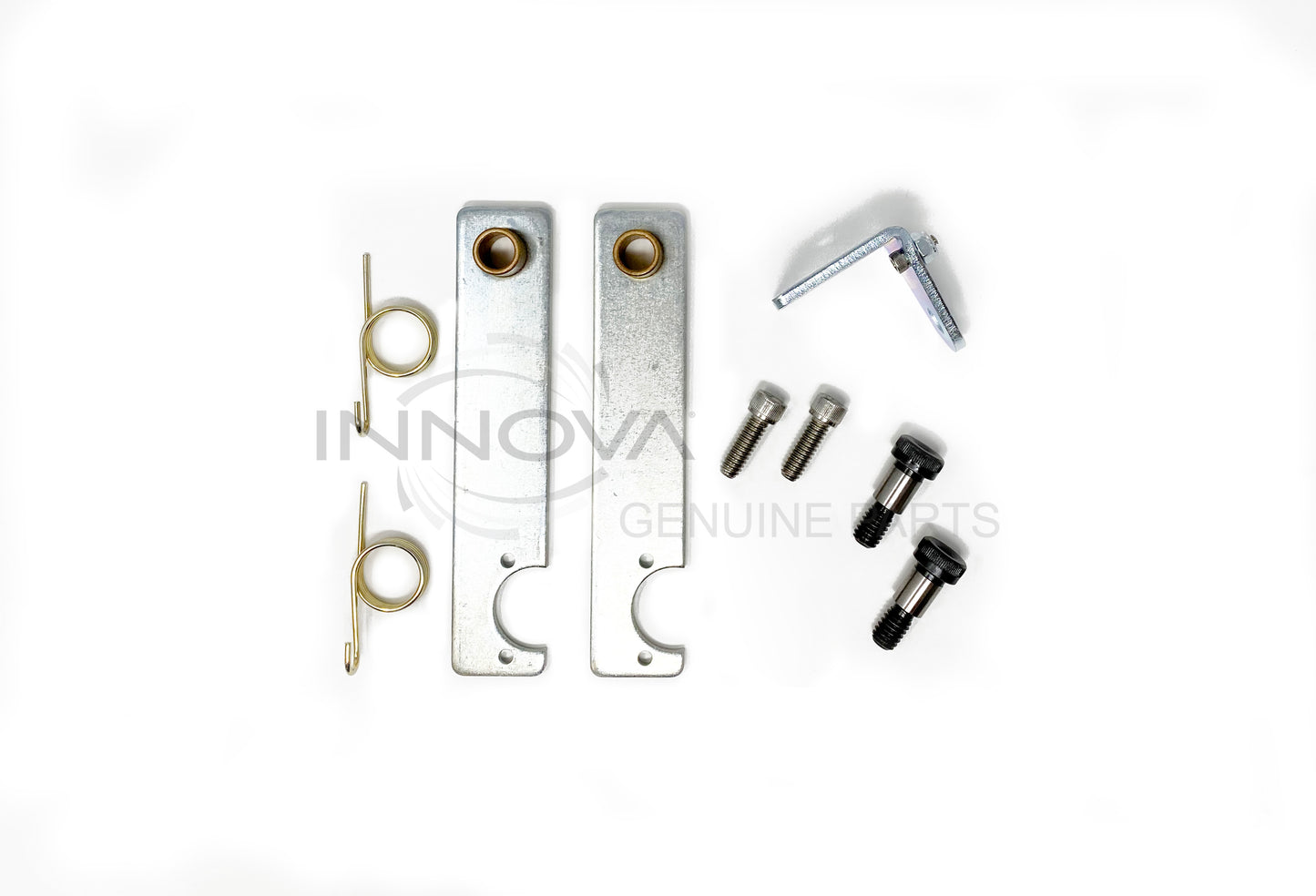

Spring Loaded Encoder Bracket Kit

• Spring Loaded Encoder Kit upgrade
• Requires Gold X Axis Caliper Mount

Included Items:

• 1x PRT1341 - Encoder Angle Bracket
• 1x HDW1008 - Hex Nut - 6-32 Nylon Insert
• 1x HDW1219 - Socket Head Bolt - 6-32 x 3/8"
• 1x HDW1068 - Hex Nut - 5/16-18 Nylon Insert
• 2x HDW1217 - Shoulder Bolt - 3/8 DIA x 1/2 Long x 5/16-18 THD
• 2x PRT1586 - Encoder Spring
• 2x BOM1460 - Encoder Bracket Assembly w/ Bushing
• 2x HDW1221 - Socket Head Bolt - 1/4-20 x 1/2
